Created with Pixso. Hot Rolled Carbon Steel Plate with 6mm - 700mm Thickness in ASTM A36 / JIS SS400 / GB Q235 and Wear Resistant NM450 / NM500 Grades

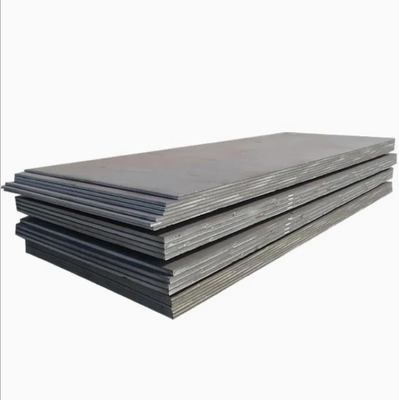

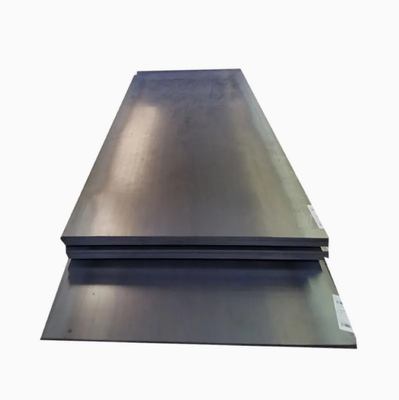

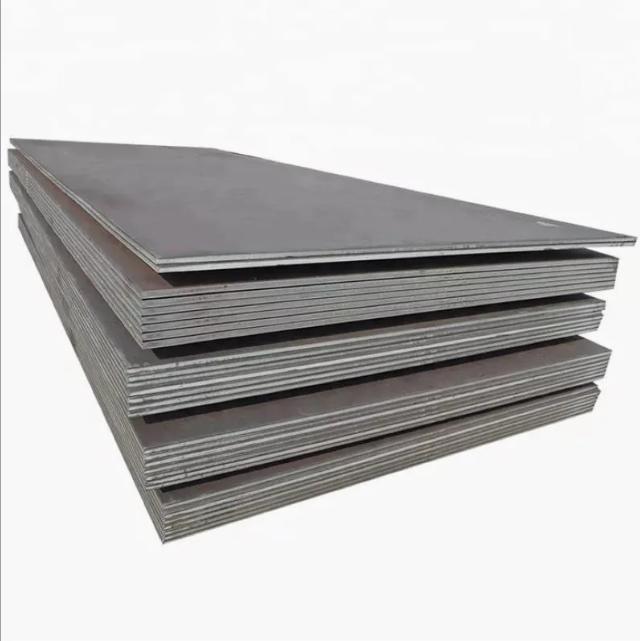

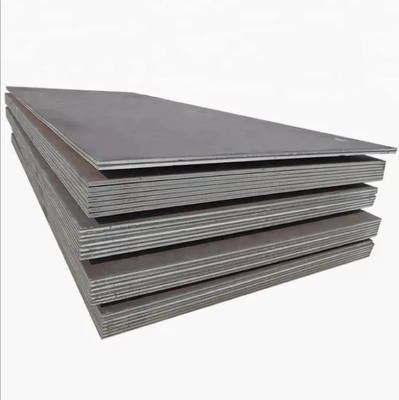

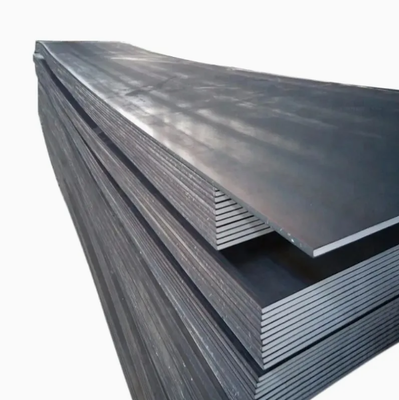

Hot Rolled Carbon Steel Plate with 6mm - 700mm Thickness in ASTM A36 / JIS SS400 / GB Q235 and Wear Resistant NM450 / NM500 Grades

ชื่อแบรนด์: Sylaith
เลขรุ่น: A36, SS400, S235JR, S355, Q235, Q345, A516, NM450, NM500
MOQ: 1 ตัน
ราคา: โปร่ง
ระยะเวลาการจัดส่ง: 7-20 วัน ขึ้นอยู่กับปริมาณ ความหนา และข้อกำหนดในการประมวลผล
เงื่อนไขการจ่ายเงิน: 30% T/T ล่วงหน้า + 70% T/T ยอดคงเหลือ
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
MTC, ISO 9001
ชื่อสินค้า:
แผ่นเหล็กคาร์บอนรีดร้อน
มาตรฐาน:
AISI, ASTM, BS, DIN, GB, JIS
เทคนิค:
รีดร้อน
การรักษาพื้นผิว:
ดำ / เสียหาย / ทาน้ำมัน / เคลือบ
พื้นผิว:
ผิวดำ
บริการแปรรูป:
การดัด การเชื่อม การลอกออก การตัด การเจาะ
ความอดทน:
±1%
เงื่อนไขทางการค้า:
EXW / FOB / CIF / CFR
ประเภทรูปแบบ:
เพชร / ถั่วไฮยาซิน / ดอกเบญจมาศ
การใช้งานพิเศษ:
เครื่องมือตัด, เครื่องมือวัด, คัตเตอร์ในเหล็กกล้าทั่วไป, แผ่นเหล็กกำลังสูง, เหล็กทนการสึกหรอ, เหล็กซ
รายละเอียดการบรรจุ:
บรรจุภัณฑ์ที่คุ้มค่ากับการส่งออกมาตรฐานหรือตามที่ลูกค้าต้องการ
สามารถในการผลิต:
1,000+ตัน/เดือน
คําอธิบายสินค้า
Product Overview

We supply hot rolled carbon steel plates (black iron sheets) in a wide range of grades including:

  • ASTM A36 / A283 / A516
  • JIS SS400 / SPHC / S235JR
  • GB Q235 / Q345
  • High strength & wear-resistant grades: NM450 / NM500

These plates are widely used in construction, shipbuilding, machinery manufacturing, pressure vessels, bridges, and structural engineering.


Cause (Why Carbon Steel Plates Are Needed)

Industries require steel materials that provide:

  • High structural strength
  • Excellent weldability and machinability
  • Cost efficiency for large-scale projects
  • Durability under heavy load conditions

Stainless steel is unnecessary for many structural uses, so carbon steel becomes the most economical and practical choice.


Solution (What We Provide)

We offer a full range of hot rolled steel plate solutions:

  • Multiple grades: A36, SS400, Q235, Q345, S235JR, S355, etc.
  • Thickness range: 6mm – 700mm (customizable)
  • Width range: 500mm – 4020mm
  • Length: up to 18800mm (custom cut available)
  • Surface: black / pickled / blasted / coated
  • Processing: cutting, welding, drilling, bending available
  • High-strength wear-resistant options (NM450 / NM500)

Specifications
Item Description
Product Type Hot Rolled Carbon Steel Plate
Grades A36, SS400, S235JR, S355, Q235, Q345, A516, NM450, NM500
Standard ASTM / JIS / GB / DIN / EN
Thickness 6mm – 700mm
Width 500mm – 4020mm
Length 3000mm – 18800mm
Surface Black / Blasted / Oiled / Coated
Tolerance Thickness ±0.02mm, Width ±2mm
Processing Cutting / Welding / Bending

Application

Hot rolled carbon steel plates are widely used in:

  1. Building and construction structures
  2. Bridges and infrastructure projects
  3. Shipbuilding and marine engineering
  4. Pressure vessels and boilers
  5. Heavy machinery manufacturing
  6. Automotive and industrial components
  7. Mining and wear-resistant equipment (NM450 / NM500)

How It Works (Production Process)
  • Steel billet preparation
  • Heating to high temperature
  • Hot rolling into plate form
  • Controlled cooling
  • Surface finishing (black / pickled / blasted)
  • Straightening and cutting
  • Quality inspection and certification
  • Export packaging and shipping

How To Choose
  • A36 / SS400 / Q235 → General construction, low cost structural use
  • S235JR / S355 → European standard, higher strength structures
  • Q345 → Medium-high strength engineering use
  • A516 → Pressure vessels and boilers
  • NM450 / NM500 → Wear-resistant applications (mining, heavy equipment)
  • Thickness guide:
  • 6–20mm → light structural use
  • 20–60mm → heavy construction
  • 60mm+ → industrial heavy-duty engineering

FAQ

Q1: What is your minimum order quantity?
A: 2 tons (or 1 ton if in stock). And sample orders are also welcome.

Q2: What is delivery time?
A: 7–10 days for stock, 15–25 days for production orders.

Q3: How do you ensure quality?
A: Strict QC system from raw material to final inspection with certification.

Q4: Can you provide samples?
A: Yes, samples are available; sample fee and freight is paid by customer.

Q5: What payment terms do you accept?
A: T/T 30% deposit, balance before shipment (or 100% for small orders).A36 Carbon Steel Sheet manufacturing process A36 Carbon Steel Sheet applications in industry A36 Carbon Steel Sheet quality inspection
